Suspect Parameter Number SPN The SPN identifies the J1939 data parameter that is the source of the issue. The SPN is used in.

Build J1939 Database On Xnet Db Editor National Instruments

SPN and Failure Mode Indicator FMI Descriptions J-1939 Fault Code Source Address SA Suspect Parameter.

J1939 spn. An SPN is for all intents and purposes a signal ID. Parameters groups are for instance engine temperature which includes coolant temperature fuel temperature oil temperature etc. The J1939 SPN serves as the identifier for the CAN signals parameters contained in the databytes.

The PGN is used in J1939 messages to identify the group and hence the parameter data that is contained in the message. It can be a physical value a status or a command. Suspect Parameter Number SPN Indicates what function on the ECU has failed.

If we want SPN data to be displayed on a meter screen or used to control an output it must first be linked to a process. PGN Parameter Group Number Parameters are grouped by common purpose and assigned a PGN. SPN FMI DTC SPN-FMI Failurecode Repair 158 4 Battery Potential Voltage Switched - voltage.

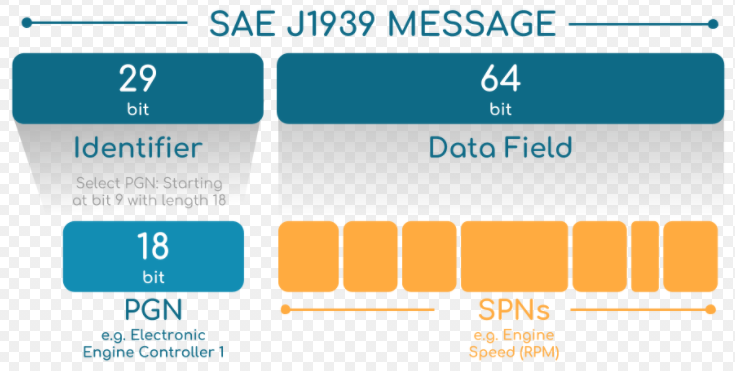

The J1939 SA identifying all Bulk- head Module faults is 33. SPNs are grouped by PGNs and can be described in terms of their bit start position bit length scale offset and unit - information required to extract and scale the SPN data to physical values. From the Main Menu enter the Processes menu and select Process 1.

For that the alarm. Parameters are defined in the SAE J1939-71 specification. Message contents are often called signals in proprietary languages.

J1939 defines not only the PGNs but also their contents. J1939 SPN and FMI Codes and their Bendix Blink Code Equivalents. BENDIX SD-13-4986 manual.

Parameter Groups and their numbers PGN are listed in SAE J1939 roughly 300 pages and defined in SAE J193971 a document containing roughly 800 pages filled with parameter group definitions plus suspect parameter numbers SPN. SPN Suspect Parameter Number Each parameter is assigned an SPN. The J1939 specification has defined the following term for the PGN contents.

639 9 J1939 Network 1 Primary Vehicle Network previously SAE J1939 Data Link - abnormal update rate Check the wiring of the chassis-CAN data connection and the relating electric. SPN and Failure Mode Indicator FMI Descriptions J-1939 Fault Code Source Address SA Suspect Parameter. One is the SAE J1939-76 standard which describes a general process for protecting a desired parameter group.

For specific examples of modules on each different data link Click Here 2The different J1939 data links work the same way but the wiring for them is not connected. Application Note - Engine Operation Emissions and DTC Monitoring using J1939 10 50-0005 SPN Fault Action If the SPN that is connected to an output is not received in the time specified a fault will be generated. After a SPN was added to the table it can be configured if a dedicated alarm shall be engaged when the SPN is included in the DM1 message.

32 Supported PGNs and SPNs PGNs of SAE J1939 PGN SPN TTR ms Data Position Slot SPN Name 61448 1762 50 1-2 SAEpr08 Hydraulic Pressure 61448 6707 50 4-5 SAEpr20 Hydraulik Intake Pressure 61448 6708 50 6-7 SAEpr08 Hydraulic Discharge Pressure Set Point. J1939 SPN and FMI Codes and their Bendix Blink Code Equivalents. The SPN is a 19 bit number and has a range from 0 to 524287.

SAE J1939 includes two different approaches for transferring safety-critical data. For proprietary parameters a range from 520192 to 524287 is reserved. If CM bit is set to 1 that means DTC bytes are aligned using a newer conversion method.

SAE J1939 is a protocol for shaping the CAN-bus message in a specific way that suits industrial vehicles such as tractors machinery trucks and more. If you want to remove one or more SPNs just select itthem and click the Remove Selected SPN button. Request parameter group The.

BENDIX SD-13-4986 manual. 139 J1939 - 139 160 J1939 - 160 OnGuard Display 184 Trailer 3 Bridge 192 Trailer 2 Bridge 200 Trailer 1 Bridge 209 J1939 - 209 Bendix Camera. 1First the drivetrain J1939 data link J1939 body builder data link and J1939 engine data link are three completely separate data links.

Parameters groups are for instance engine temperature which includes coolant temperature fuel temperature oil temperature etc. Parameter Groups and their numbers PGN are listed in SAE J1939 roughly 300 pages and defined in SAE J193971 a document containing roughly 800 pages filled with parameter group definitions plus suspect parameter numbers SPN. 24 Special Parameter Groups SAE J1939-21 defines some parameter groups on the data link layer.

Specifications of OBD data required from SAE J1939-compatible vehicles Field Description Message ECU PGN SPN Variable Name Length Type Layout Range Comments Device Test Information Device Name DN na DeviceNamena na 50 S na na Device Serial Number DSN na na na. Change the name to Engine RPM change the Type to J1939 SPN and press the Input button to bring up the SPN list. Failure Mode Indicator FMI The FMI value indicates the type of issue that has occurred.

Older SAE J1939 specifications supported 3 methods for SPN while the newer versions of specifications support only one conversion method called method 4. Use SPN Fault Action to specify the outputs prefered state during fault conditions. The Suspect Parameter Number SPN is diagnostic fault code terminology found on some Caterpillar products using a J1939 CAN data link.

Each J1939 parameter is assigned an SPN. See the J1939 Data Mapping Explainedpdf document for details on J1939 parameter definitions. The Society of Automotive Engineers SAE developed the J1939 standards and SPN code terms have been assigned for specific parameters component or system circuits that diagnostic trouble codes DTC are associated with.

The other involves standardized parameter groups specified by SAE J1939 featuring a. Suspect Parameter Number SPN.
